High Voltage Towers Explained: Design, Function, & Importance

High Voltage Towers: Essential Infrastructure for Power Transmission

High voltage towers are critical components of modern electrical systems. They straddle high-voltage power lines, transmitting electricity from power plants to substations and, later, to distribution networks. These structures are built in different shapes and materials to enable the secure and effective long-range transmission of electricity.

What are High-Voltage Towers?

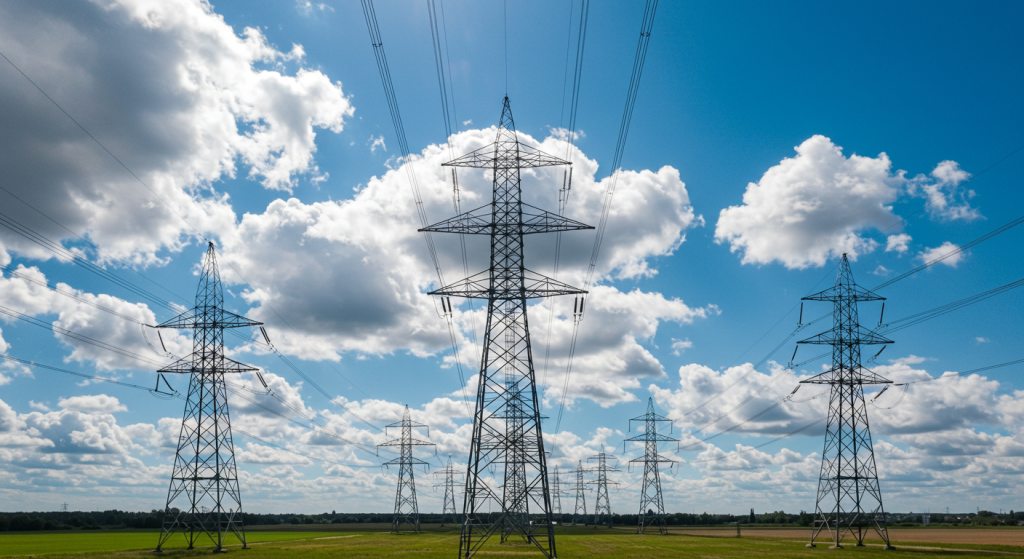

High voltage towers, also referred to as electricity pylons, are large structures designed to securely mount and elevate electrical conductors overhead. These vertical structures form an integral part of power-transmitting systems that underpin the supply of electric energy into major urban centers, small towns, and even industrial areas.

Types of High-Voltage Towers

There are numerous types of towers, all different in design and function:

• Suspension Towers: They have the purpose of supporting straight-section conductors.

• Lattice Transmission Towers: Lattice steel towers are the most common, offering high durability and strength.

• Guyed Towers: These are lightweight and cost-efficient, although they require more ground space.

What are Lattice Structures?

A lattice tower is a modern, tall, self-supporting steel structure that is used in the power transmission and communication technology industries. Its basket-shaped structure, made of intersecting grids, greatly improves its lightness and smoothness while providing remarkable load-bearing capacity. This enables it to bear suspended loads, such as power pylons and antennas, while being employed over great spans.

Why Use Lattice Structures with High Voltage?

Lattice structures are the most cost-efficient means of high-voltage power transmission because of their unparalleled strength, resistance, and low cost. They are also strong enough to withstand the rapid movement and changes of extreme open-frame weather, such as snowstorms and hurricanes.

Lattice Tower Specifications

• Material: Q255B/Q355B/Q420B

• Range: Custom height between 5m – 200m

• Wind Exposure: up to 30M/S

• Voltage Range: 10kV – 500kV

• Icing thickness: 5mm – 25mm (region-specific)

• Types: Suspension tower, tension tower, dead-end terminal tower

• Options for Circuits: Single, double, three, and four circuits

• Surface Treatment: Hot dip galvanizing with corrosion-protected coating recurring phrase

Why Choose Us: Choose Lattice Towers

For unparalleled performance and precision accuracy in high-voltage power lattice towers, let us help you achieve product excellence through sustainable engineering.

Additional Precise Construction Aspects: Constructing High-Voltage Towers

• Structural Fiber Reinforcement:

Integration of the high voltage tower’s design must include conductor loads, wind, ice, and the weight of the tower.

• Conductor Spacing:

The spacing functions to prevent electrical interference as much as possible and makes room for maximum energy flow to take place.

• Construction Materials:

Steel, aluminum, and composite materials.

• Control of Vegetation:

Edifices below and vegetation above ground must be avoided, ensuring a needed distance is maintained.

Tower Foundation

This design greatly enhances the stability of the tower. Foundations can further be subdivided into two primary types:

• Pile Foundations: Best option for weak and/or soft soil.

• Raft Foundations: Best for strong soil and requires a more tightly distributed load.

• Beams grillage can also be used: Constructed with concrete or steel support placed under girders.

Wind Load

Stressing forces created by strong gales are classified under wind load and are critical for doing construction analysis on towers.

• Ice Load: Weight added due to the accumulation of ice.

• Seismic Load: Earthquake support structure stability.

The Electrical Components of the High-Voltage Towers

• Insulators

Insulators, in this regard, are used for containing electrical energy by ensuring no leakage occurs below the conductors, suitably spaced apart, and containing it. These include:

•          High Voltage Suspension Insulators: Used in high-voltage power transmission high voltage lines

•          Pin-type insulators: Lower voltage applications.

•          Post Insulators: Substations, Switching Stations.

• Crossarms

Crossarms are used to support and maintain the conductors. They are manufactured by steel and composites.

• Tower Grounding Systems

They are vulnerable to lightning strikes and electric sabotage, therefore, the need for appropriate grounding methods arises.

• Rod Grounding: Metal rods placed in the soil.

• Counterpoise Grounding: a ground network of buried conductors aimed at dissipating dangerous electricity.

• Lightning Porters

To mitigate the effect of lightning on high-voltage towers, protective measures are taken. These include:

•          Shield Wires: Located on the uppermost sections of the Towers to prevent lightning strikes on the tower.

•          Grounding Electrodes. Dispose of hazardous electric energy safely.

AVR and AWM: Routine Oversight Activities

• Scanner Inspection Review: Searching for poorly retained bolts and crude fissures, as well as corroded areas.

• Thermal imaging methods: Identifying excessively hot components.

• They monitor for Excessive Vibratory Movements: Identifying movements considered harmful due to their excessiveness to the structural integrity of the tower.

Strengthening and Retrofitting of the Tower

In an attempt to maintain the correct functioning of older towers, they must bestow reinforced crossarms that augment the enduring strength of the tower. New insulators with vast electrical ability. Advanced bracing aimed at helping ward off forced environmental changes.

• Impact Evaluation

Managing structures and trimming the vegetation around the HV towers improves safety. Within the area of consideration as ROW, vegetation is spatially dependent, but generally, a clear band with no vegetation or counterattractions is preserved.

• Environmental Policies

Geographic Disruption The scope of maintaining the landscape is greatly restricted.

• Bird Collision Minimization:

Avoiding interference with the breeding population and minimizing the collision of birds with towers

Differences Between HVAC Towers and HVDC Towers

• High Voltage AC: Covering the range of short and medium, HVAC is cheaper but has higher energy losses.

• HVDC is ideal for long-distance power transmission with little to no energy loss.

Advancements in Transmission Grid Technologies

Traditional parameters of efficiency in towers have improved with the introduction of smart grids. These towers are now more dependable due to:

• Fault Limiting: Ensures optimal flow of power and helps in real-time fault identification.

• Automated Switching: Outage management is enhanced compared to normal procedures.

• Supporting Transmission of Wind and Solar Energy: Outdated paradigms now help in the smart integration of renewables.

Conclusion

To summarize, high voltage towers will remain foundational to the functioning of an electric grid system. These structures include the design and construction, use, operation, and maintenance, which includes environmental care, of sophisticated electric high towers for renewable source smart grids. For further information on the possibilities of high-voltage tower solutions, visit XY Tower.
